Binks Cardboard Concertina Filter
– Primary Spray Booth Filter
– Designed for wet & dry overspray
– Suitable for commercial spray booths
– Suitable for any paint, varnishing or lacquer spray
– Size: 9.2m x 900mm
Applications
The Binks Bullows cardboard concertina filter is used for commercial spray booths for removing the bulk of wet and dry over spray from within the booth prior to secondary filtration.
Cardboard Concertina spray booth filters can be used with any paint, varnishing or lacquer spraying applications for cars, furniture, or other products.
Description

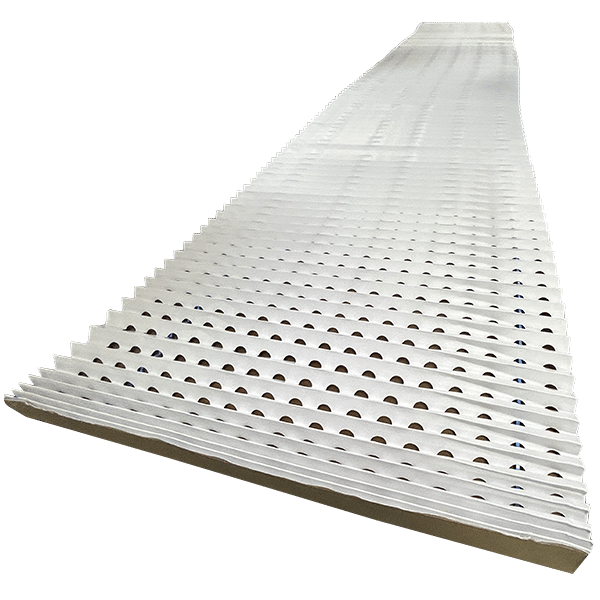

This cardboard concertina filter is constructed from two sheets of heavy paper containing staggered rows of perforations. Paint and particulate deposits in the air attach themselves to the spray booth filter as they hit the surfaces within before leaving the filter.
Binks Bullows style spray booth filters are installed across the width of the booth with one end clipped in place. The working section of the filter is pulled across the spray booth and secured. Once the filter becomes too dirty / paint ladened to use, it can be cut and removed allowing for a new filter section to be pulled across.
Technical Information
Maximum Recommended Face Velocity : 0.25 to 1m/s
Clean Pressure Drop : 55Pa at 1m/s
Recommended Max Pressure Drop: 128Pa
Filter Dimensions: 9.2m x 900mm
Spray Booth Filter Selection Tables
Downloads
Catalogue Data Sheet – Binks Style Cardboard Spray Booth Filter
Operating and Maintenance Instructions – Binks Style Cardboard Spray Booth Filter
