Pressure Switch

Pressure Switch
MyWebMan
March 30, 2023

Pressure Switch

Applications of a Pressure Switch

A Pressure Switch is used in measuring the differential pressure or overpressure of air or other non-aggressive or non-combustible gases.

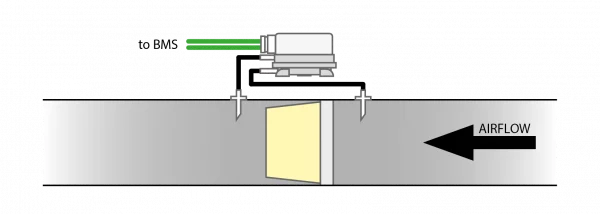

Pressure switches can be used in a number of different applications for example observing airflow within ductwork and industrial cooling-air circuits, protect fans from overheating and monitoring air filters.

Description of a Pressure Switch

The housing is made of PA 6.6 and the cover is PS. The diaphragm is silicone which is tempered at 200 degrees Celsius and is free of gas emissions.

Technical

Maximum operating temperature is 10kPa for any pressure range
Medium and ambient temperatures from -20°C to +85°C, storage temperature from -40°C to +85°C.
Two plastic pipe connection pieces with external dimensions of 6.0mm.
Weight with the cover 150g, without the cover 110g.

Filter Pressure GaugesPart No.
Differential Pressure Switch1908702
Pressure Tapping Kit (includes 2x pressure tapping points + 1m hose)1908704
