H14 HEPA Fan Filtration System
- High Care / Food Manufacture / Food Preparation
- IAQ Filtration System incorporating a fan up to 0.8m3/s
- Retrofittable for Fan Coil / Air Conditioning Systems that require HEPA Filtration
- Can be used to attain HEPA Filtered Positive Pressure environment
- Improvement of Indoor Air Quality on systems not designed originally for HEPA Filters
- Control HEPA filtered air supply based on CO2 levels or constant pressure (Not fitted as standard)
Description
The HEPA Supply Air Fan Unit is a complete Fan-Filter air movement system incorporating HEPA Filtration up to grade H14 to EN1822. This Air Handling Unit can be fitted as a standalone supply or recirculation HEPA filtration system, or retrofitted and balanced to work with an existing mechanical ventilation system such as a fan coil system or air conditioning systems which do not have an existing ability to support HEPA filtered air.
The HEPA Supply Air Fan Unit is fitted with a high pressure and speed adjustable EC fan which is wired to an external terminal box to which power connections and speed adjustments can be made manually via a 0-10V signal potentiometer.

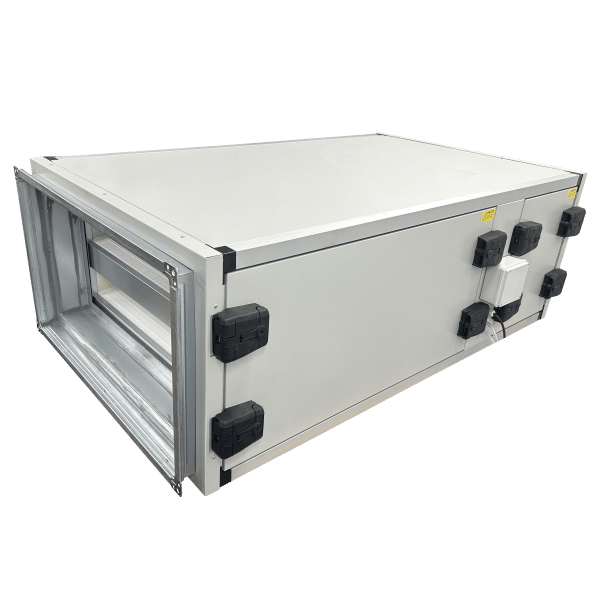

The HEPA Supply Air Fan Unit is manufactured in a standard Air Handling Unit construction with an anodised aluminium pentapost frame, fitted with double skinned mineral wool insulated panels. The unit is finished with a grey plastic-coated leatherette steel. A single removable access door provides access for changing the HEPA and any pre filters, and also allows for fan inspection and easy cleaning.
Optional Extras
Addition of Prefiltration : Pleated Panel Filters @ Coarse 65% (G4) to ISO16890. (HV+ UNIT)
Automatic Controls : CO2 Sensor and controls or Constant Pressure.

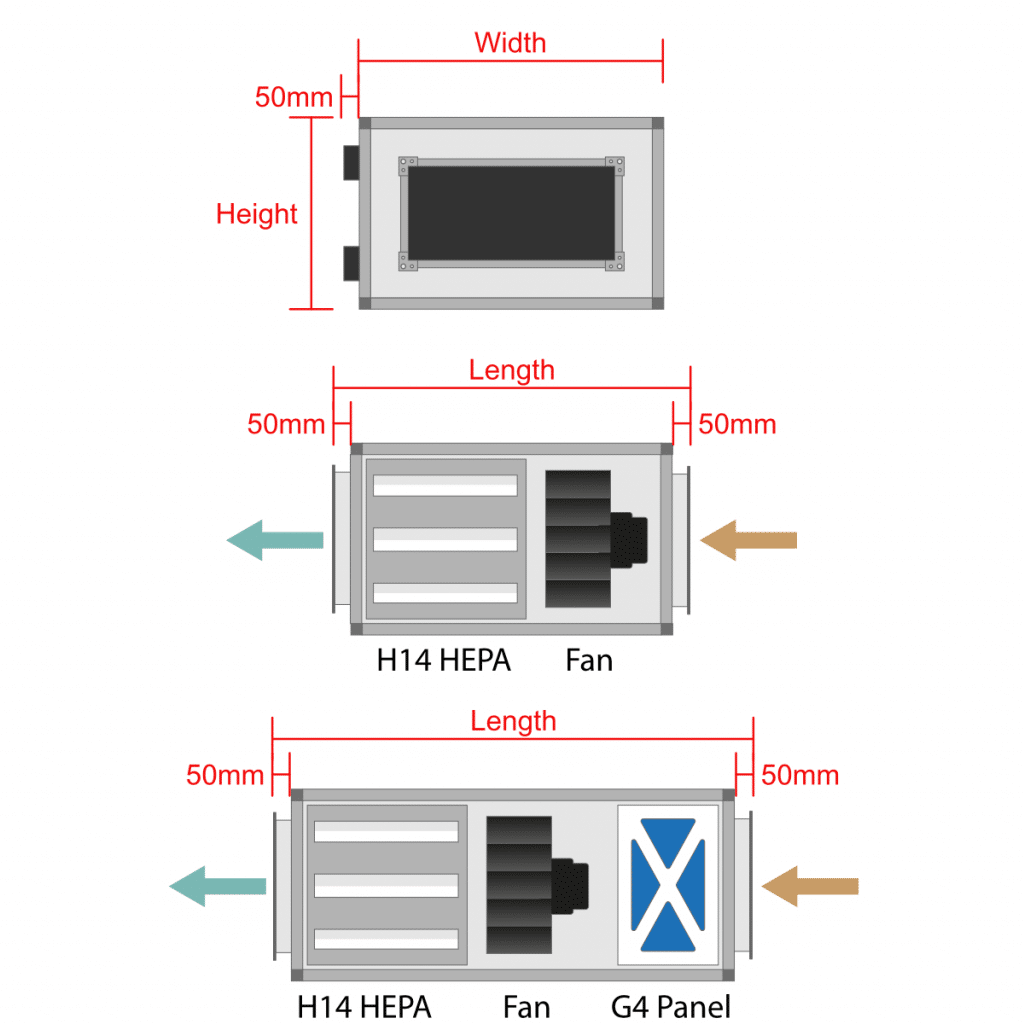

| HEPA Supply Air Recirculation |
|---|
 |
| Recirculation HV+ unit including G4 Panel + Fan + H14 HEPA |
| HEPA Supply Air from outside |
|---|
 |
| Supply air HV+ unit including G4 Panel + Fan + H14 HEPA |
| HEPA Supply Air With Fan Coil |
|---|
 |
| HV unit including Fan + H14 HEPA, Fan coil system to include prefilter |
Technical
- Airflow operating Range: up to 0.8m3/s
- Single Phase 240 Volt 50 Hz operation
- Grade H14 to EN1882
- Prefilters when fitted are G4 Pleated Panel Coarse 75% to ISO16890 and a Grade F7 to EN779 Minicell, ePM1 60%
- Pressure switch with warning lights for dirty filter conditions can be supplied.
| UNIT | Flow Rates & Available Pressure * | Unit Dimensions mm | Part Number |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Airflow (m3/s) |
Clean External Pressure (Pa) |
Height | Width | Length | Spigots ** (diameter) |
||||||
| High | Med | Low | High | Med | Low | ||||||
| H14 HEPA + Fan | |||||||||||
| HV33 | 0.22 | 0.19 | 0.17 | 347 | 425 | 505 | 450 | 450 | 900 | 300 | 1908855 |
| HV63 | 0.40 | 0.33 | 0.25 | 75 | 220 | 285 | 450 | 750 | 900 | 300 | 1908857 |
| HV66 | 0.80 | 0.65 | 0.55 | 116 | 410 | 600 | 750 | 750 | 900 | 500 | 1908859 |
| Prefiltration + H14 HEPA + Fan | |||||||||||
| HV33+ | 0.22 | 0.19 | 0.17 | 347 | 425 | 505 | 450 | 450 | 1250 | 300 | 1908856 |
| HV63+ | 0.40 | 0.33 | 0.25 | 75 | 220 | 285 | 450 | 750 | 1250 | 300 | 1908858 |
| HV66+ | 0.80 | 0.65 | 0.55 | 116 | 410 | 600 | 750 | 750 | 1250 | 500 | 1908860 |
* Available pressure is with clean filters and includes prefilters
** Spigots are a male connection on Outlet (i.e. manufactured 5mm less than the dimension stated).
