Magnahelic Air Filter Pressure Gauge

Magnahelic Air Filter Pressure Gauge
Jaime Graymead
21st October 2016

Magnahelic Air Filter Pressure Gauge

– Device for measuring the differential pressure across air filters.
– Used to determine when an air filter is “Dirty”
– Clear to read
– Suitable for use on Air Handling Units
– Also used to measure room pressures in cleanrooms and high care environments.

Applications

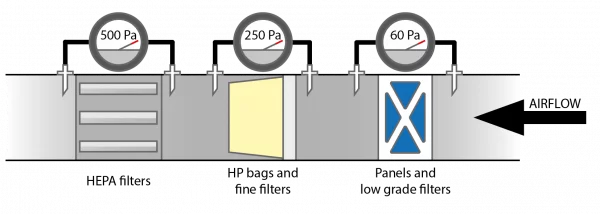

Magnahelic Gauges offer a method of measuring differential pressure accurately and easily across filter sections to indicate dirty air filters, room and duct pressures.

Description

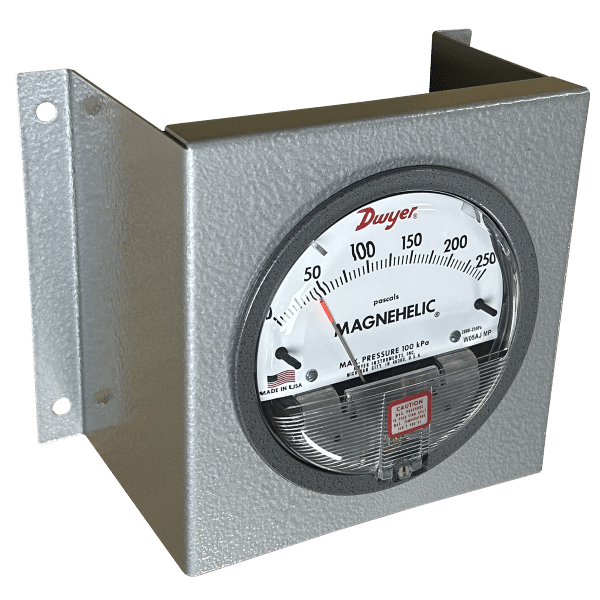

The Magnahelic Gauge’s body and bezel is manufactured from die cast aluminium, and has a clear acrylic PVC facia giving this product a quality finish and a long service life. Its clear print and orange indicator pin offers an “Easy to Read” display.

Technical

Measuring Range: 0-400Pa (Other Scales Available Upon Request)

Filter Selection Tables


Airclean manufacture both Standard and Non Standard Air Filters.
For Non Standard Sizes please contact on 01622 832777 or fill in the contact form below:
