Inclined Manometer Air Filter Pressure Gauge

Inclined Manometer Air Filter Pressure Gauge
Jaime Graymead
August 1, 2017

Inclined Manometer Air Filter Pressure Gauge

– Device for measuring the differential pressure across air filters.
– Used to determine when an air filter is “Dirty”
– Accurate and simple to install
– Also used to measure room pressures in cleanrooms and high care environments.

Applications

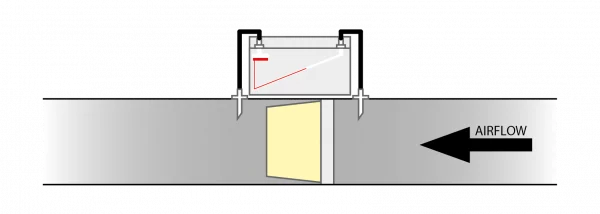

Inclined Manometers offer a method of measuring the differential pressure across air filters as an indication of their life. These can be easily fitted to Duct Mounted Filter sections or Air Handling Units as a maintenance guide.

Red liquid within the Inclined Manometer will clearly and accurately indicate the differential pressure across Bag and Panel Air Filter sections, and also pressurised rooms, cleanrooms and ventilation networks.

Description

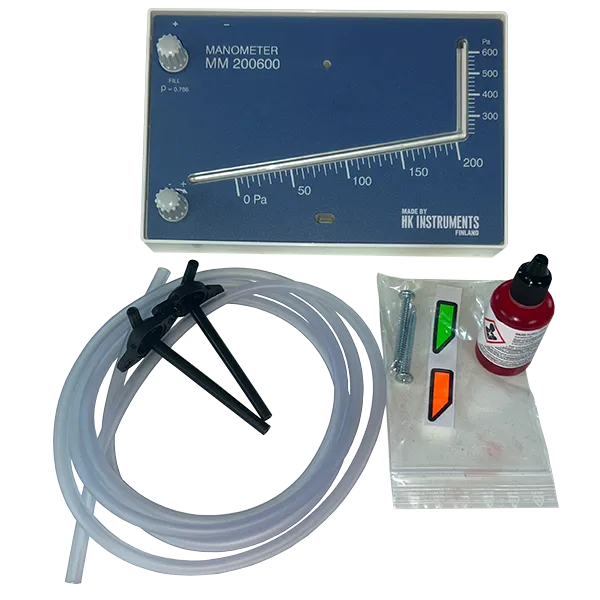

Our Inclined Manometers are machined from 25mm thick Altuglas (PMMA), and come complete with a white PVC mounting plate for installation. A built in spirit level allows for quick and simple mounting whereafter the zero point can be adjusted and set. A fluid Expansion Tank is included to allow for accidental over pressure.

Technical

Accuracy : 2% at 20 Degrees Centigrade
Dimensions: 192W x 105H x 25Dmm
Measuring Range: 0-400Pa

Filter Selection Tables


Airclean manufacture both Standard and Non Standard Air Filters.
For Non Standard Sizes please contact on 01622 832777 or fill in the contact form below:
